Introducing Prefect-ML: Orchestrate a Distributed Hyperparameter Grid Search on Dask

Kevin Kho
Kevin KhoSenior Community Engineer

Are you familiar with the hottest new hyperparameter tuning framework called Prefect-ML? Well probably not, because it doesn’t exist. However, even though Prefect is primarily a workflow orchestration tool, it actually provides us with a lot of building blocks to perform hyperparameter tuning and tracking of machine learning (ML) experiments. By leveraging the built-in DaskExecutor, we can parallelize training ML models distributedly over a Dask cluster. This blog will show how Prefect’s mapping can be used as an interface for hyperparameter training.

This article assumes minimal ML knowledge. The final code can be found in this Github repository.

When working on ML problems, data scientists often have to fine-tune their models to improve performance. Fine-tuning involves trying different combinations of model hyperparameters — the parameters used to govern the model training, making the fitting process more aggressive or less aggressive. The image below from AWS documentation gives us a good intuition for what “more aggressive” or “less aggressive” looks like.

0 VYmnnAij9IpDEF1D

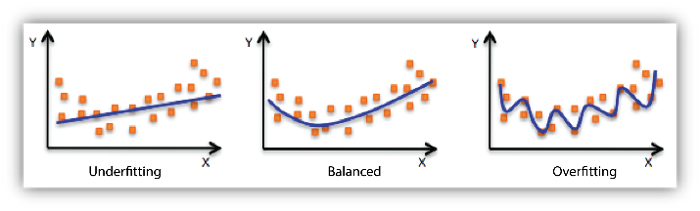

Image from AWS documentation on model overfitting

The model on the right side is too aggressive and unlikely to generalize well to new data when put in production. So how do we find this sweet spot? By trying different hyperparameter combinations and looking at the metrics.

One such approach is to create a set of possible models and hyperparameters. For each item in this set, we train the model and look at the metrics generated. This is called a grid search because we make a grid of potential hyperparameter combinations. After collecting the results of a grid search, we can fine-tune the search space and create more informed combinations of training jobs. After enough iterations, we eventually will have converged to a good set of hyperparameters.

Because a grid search is comprised of independent training jobs, we can actually save time by running these jobs in parallel on all available cores of our machine. When our machine isn’t powerful enough, we can utilize a distributed cluster to run multiple jobs in parallel.

Before we dive into code, it’s important to distinguish that there are two forms of distributed machine learning. The dask-ml documentation does a good job of distinguishing the two.

The first type is memory-bound problems. This is when the data doesn’t even fit on a single machine, so one machine learning model is trained across a cluster simultaneously. This requires communication between the different workers during the intermediate steps.

The second type of problem is compute-bound. In this scenario, we want to train potentially hundreds of models that are independent, and a cluster speeds up the execution of these training jobs.

0 vQuA-YfEfvzXSuDJ

dimensions of scale chart illustrating the two types of distributed machine learning: memory-bound, and compute-bound.

Thinking about independent job runs, Prefect, as a workflow orchestrator, already provides an elegant interface around parallelizing independent tasks in the form of mapping. We’ll use this interface to orchestrate our ML training jobs over Dask.

In practice, there are other libraries that are optimized to handle this problem such as ray-tunetune, and dask-ml, but if we’re already using Prefect, it’s very easy to extend what we already know without having to learn a new tool.

As with any ML tutorial, we’ll start by grabbing a dataset. We’ll use the Titanic dataset from Kaggle, a very popular dataset for ML tutorials. We’ll download the train.csv and name it titanic.csv. This lets us load it with the following code.

For those unfamiliar, the Titanic dataset contains the passengers of the Titanic, and the goal is to predict whether or not they survived using ML. The dataset looks like this:

0 YFjgak66axY JiHD

first few rows from the Titanic dataset

Kaggle provides a good explanation of each of the columns on the dataset page. For our demo, we’ll just get the simplest columns to train a model on.

For the grid search later, we will try a couple of different models. Some of them can’t handle NULL values, and some of them can’t handle categorical features (variables), so we need to massage the data a bit with the code snippet below. Here, we drop the useless columns, turn Sex from male and female to 1 and 0, and one-hot encode the Embarked column with the pandas.get_dummies() function.

For those unfamiliar, one-hot encoding is replacing one column with N categories to N binary columns that contain 1 or 0. This helps machine learning models work with numbers rather than categories.

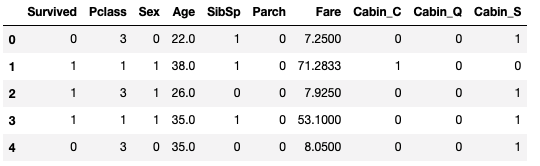

The new data will look as follows (the last three columns are the one-hot-encoded Cabin column):

0 IpeC1U0Y3k5BXCTf

first few rows of Titanic dataset after transformation

The point here is that we have a purely numeric dataset, which is a requirement for some models.

Now that we finished preparing the data, we need to split it into a training dataset and the testing dataset. Earlier we mentioned that some models don’t generalize well to new data they weren’t trained on. Splitting our dataset allows us to simulate how well our model generalizes because we calculate the performance metrics on the held-out test set.

In the code snippet below, X is the data we are using to make a prediction and y is the thing we are predicting (Survival). After we split the dataset, we fill the NULL Age values with the mean Age of the training dataset. It is a best practice to calculate this mean from the training dataset only because we “don’t know” the test dataset records ahead of time.

Here is where the fun begins. We can create a train_model() function to train a model. It’s a generic wrapper that takes in the model and data. In order, it will:

  • fit the model on the training data

  • create predictions from the test set

  • compare the predictions from the real test set values

  • return the model used and the accuracy values

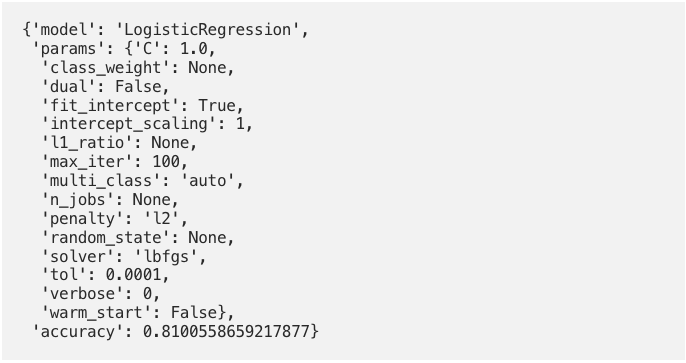

We can test this function with a LogisticRegression() model, producing the output shown below. The important part is that it contains the model name, accuracy, and the parameters that went into the model (all these are default values), which are necessary to reconstruct the model.

Screen Shot 2022-02-14 at 10.59.59 AM

sample output of train_model function

Because of the uniform scikit-learn interface, all of the available models have .fit() and .predict() methods. This makes our train_model() function work on any of the scikit-learn classifiers. Here we pass a different classifier to our function. This one has a much lower accuracy (68.72%).

1 7FiKGwZBZqBpEyEykY8LiA

Sample output of train_model function

The code written so far will serve as the backbone of distributing these jobs.

To bring our code to Prefect, we just need to wrap our previously written code into functions decorated by the @task decorator. This create_data() task is just the code we had earlier wrapped in a function. nout=4 in the @task decorator means there are four outputs of the task.

The code block below lists the models we will be using for our machine learning training jobs. There are five different types of models we will try. For the, we will try two sets of hyperparameters. We could keep going and generating parameter combinations as much as we want, but we’ll learn a better way to do it later. The get_models() task will return this list.

Next, we have the train_model() task. This is exactly the same as before.

Lastly, we make a get_results() task that will get all of the training jobs, create a DataFrame from them, and then log the values to show us the results.

Here is where we piece together all the tasks that we created. It should look straightforward except for the train_model() call where we .map() over the models. Because get_models() creates a list of 6 models, train_model will map over these six models and run once for each. Because the X_trainX_testy_trainy_test remain the same over the training jobs, we mark them as unmapped.

The code will still run sequentially even if we use mapping because we didn’t define the Prefect executor. The default executor is a sequential LocalExecutor. For local parallelism, we can attach the LocalDaskExecutor to our Flow. Now, this is ready to utilize all the available cores of our machine.

But of course, this article is about distributing over a Dask cluster. In this case, we just need to use the DaskExecutor and configure it to spin up a temporary cluster or point to an existing cluster. Prefect will then take care of submitting tasks to the cluster for execution.

from prefect.executors import DaskExecutor flow.executor = DaskExecutor(insert_configuration_here)

More information on configuring the DaskExecutor can be found in the docs.

One of the elegant things about using the mapping interface is that the execution environment is separated out from the logic. We just need to add an executor to go from local execution to distributed execution.

The last part is to register and run with Prefect Cloud and see what the output looks like. If you recall, we logged the results of our hyperparameter tuning experiments. The image below shows the logs. We can see one of the RandomForestClassifier models performed the best.

0 7O0b1ZK-iJQYK5vn

image of result logs from described hyperparameter tuning experiments.

This view is unsatisfying though because the params are hidden. We can easily improve it by modifying our get_results() task to create a markdown artifact to be rendered in the UI instead of just logging the results.

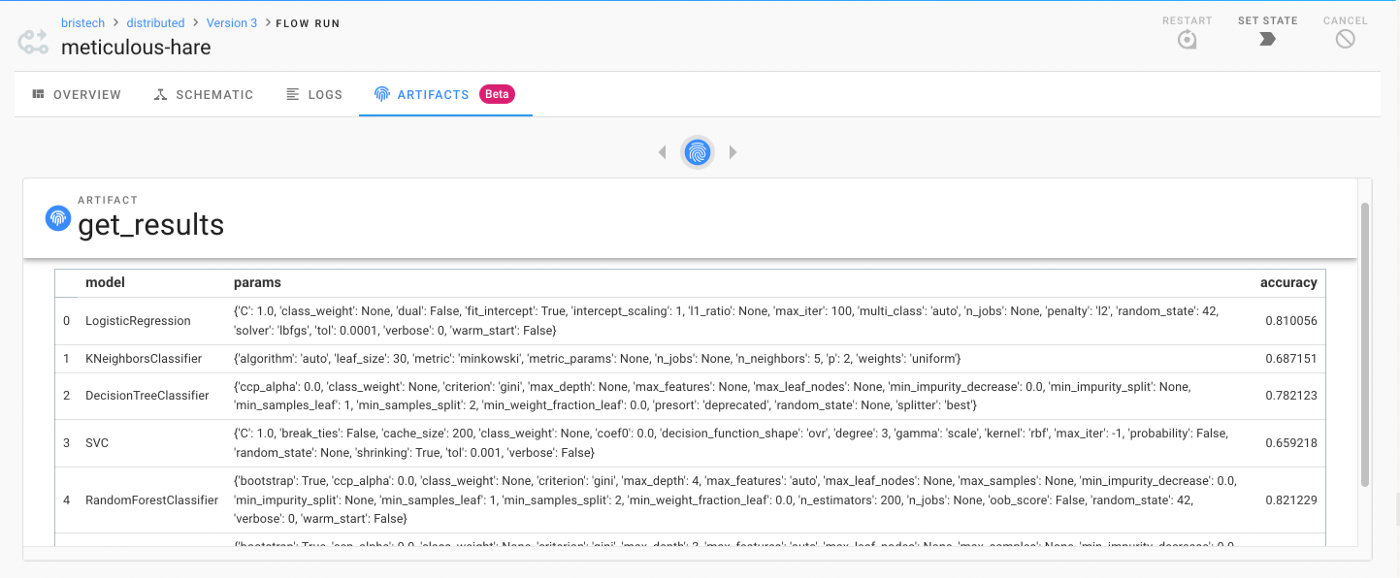

Now we can view the table properly in the UI (after registering and running the flow). Because it’s attached to the Flow Run page, we can return to the Prefect UI in the future and see the experiments we previously ran! We can even create plots to compare model performance based on the increase or decrease of certain hyperparameters.

0 v4J6IESyaoIMJnNL

Artifact of model training viewed on Prefect Cloud

Looking at the initial set of results, our top three models were the LogisticRegression model and the two RandomForestClassifiers. At this point, we can consider focusing on these models and fine-tuning these specific models. The tune library gives us a scalable and elegant way to define the search space of hyperparameters.

There are two approaches we can take to find better hyperparameters. The first is the Grid Search, where we have a predefined grid of hyperparameter combinations. Sometimes though, using a grid approach can limit our search space. We can also use a Random Search instead, which is just a random combination of possible hyperparameter values.

The code snippet below uses the tune library to create the search space. For this specific problem, we’ll combine Grid Search and Random Search. We create two distinct search Spaces for the LogisticRegression and for the RandomForestClassifierGrid means that all of the values should be tried. Rand means that a random number from the range is taken, and RandInt means a random integer is taken.

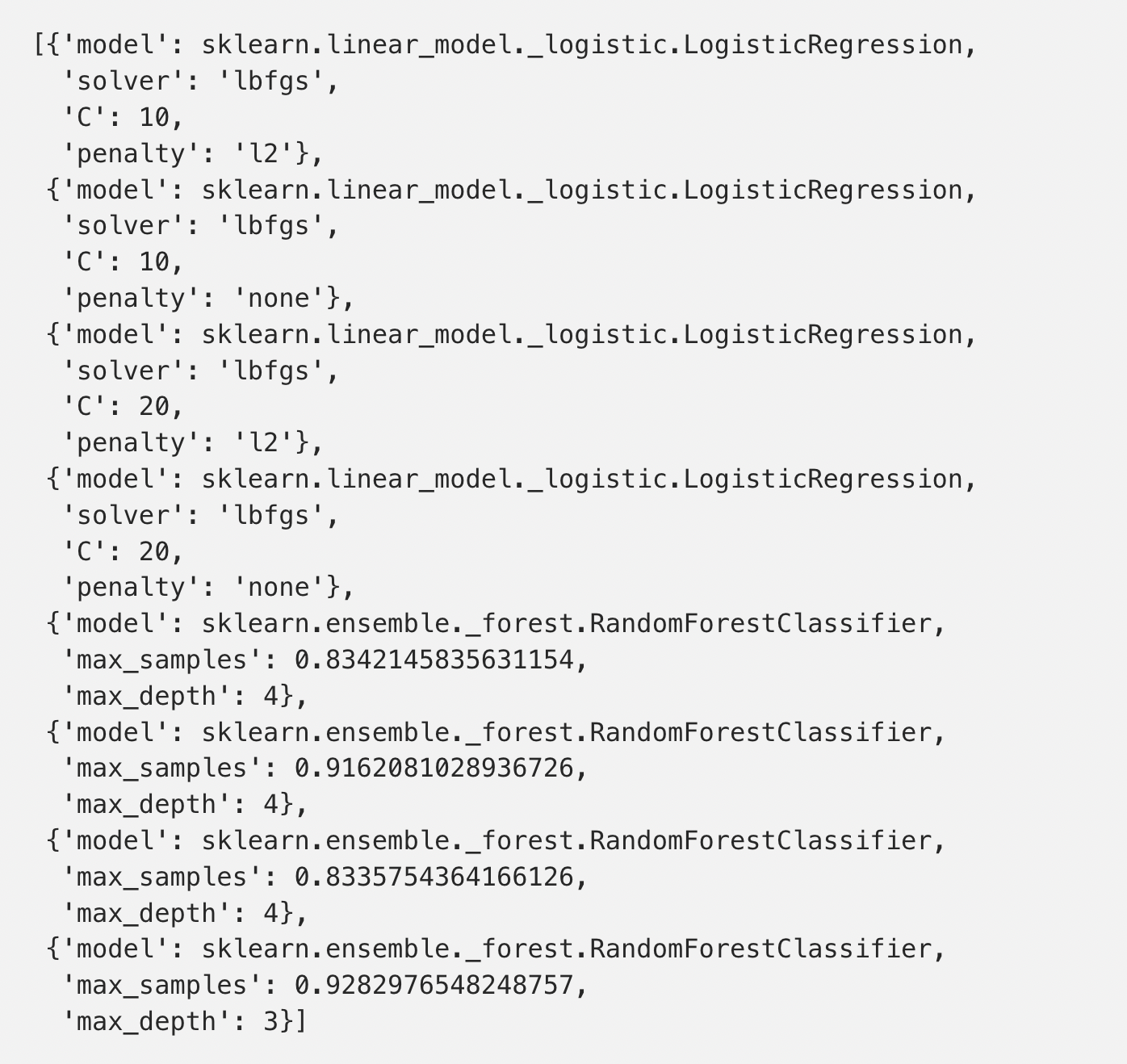

This code snippet is a list of dictionaries we can use to iterate over. The first four are generated from space1 and the next four are generated from space2 . Notice space2 is comprised of random values.

1 FR6MyfnnWEJiOiJdTtAxig

Model search space example

Using this search space, we can create a new get_models() task. Notice this expression is very parameterizable. We can use Prefect parameters to control the number of samples, or maybe even a hyperparameter range of acceptable values. Now, we replace our previous get_models() function with the new one that uses Space.

After registering and running again via Prefect Cloud, we can view the new artifact.

0 vVtUxTp2KpBK2-PN

New artifact generated by using tune

For more information on the tune library, the Search Space docs can be found here and a recent PyData talk can be found here.

Note that in order for this approach to work, the models and data need to be serializable by cloudpickle in order to be sent to Dask. Fortunately, pandas DataFrames and scikit-learn models are serializable, which makes this approach applicable to a lot of use cases. It won’t work for deep learning models that are not serializable.

Even though Prefect is a general-purpose orchestrator, it can be used to train machine learning jobs in a distributed fashion. By using the mapping feature, we can leverage Prefect as an interface to submit model training jobs to Dask. Features such as artifacts and parameters provide building blocks to make Prefect an experiment tracker that can be used to monitor ML workflows alongside data engineering workflows in a single UI. For data professionals already using Prefect, the interface shown here is easy to adopt, yet highly scalable.

Happy engineering!
